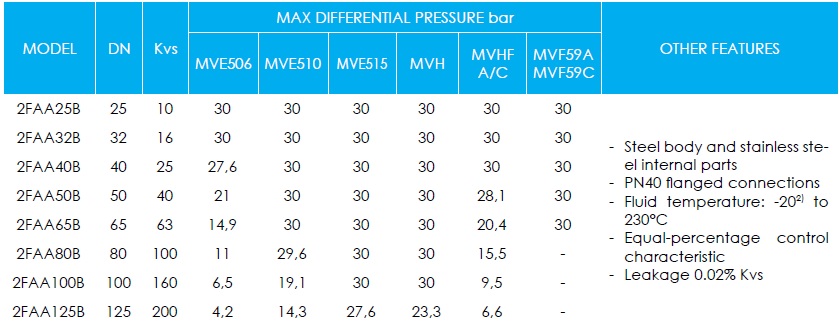

Specification 2FAA80B
DN	80
Kvs	100

Thumb	File Name	File Size	Action
	2FAA.B_DBL319e.pdf	47.51KB

    Series 2F.B PN16-25-40
    Stroke 16.5 mm (DN25), 25 mm (DN40 to 65) 45 mm (DN80 to 150).
    To be motorised by MVH-MVE actuators.

Thumb	File Name	File Size	Action
	2FAA.B_DBL319e.pdf	47.51KB

servomotoare
DN	80
Kvs	100

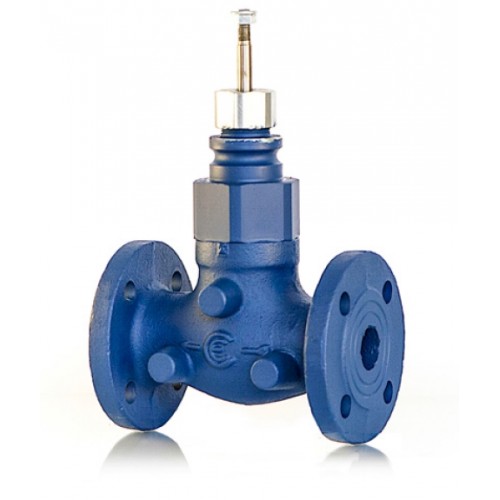

2-way Valves 2FAA80B

Product Code: Controlli 2FAA80B
Availability: Ask
Weight: 44.00 kg

Order by phone or request additional info at +40 728 628 394
