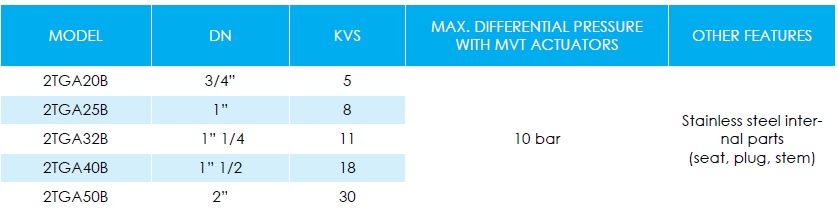

Specification 2TGA20B
DN	3/4"
Kvs	5

Thumb	File Name	File Size	Action
	2TGA..B_DBL367e.pdf	135.38KB

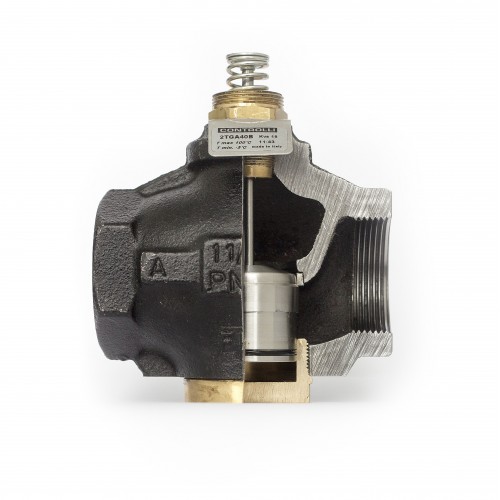

2TGA.B Series 2-way valves PN16 with pressure balanced plug, compact dimensions, threaded connections up to 2”, maximum temperature 130°C, suitable to applications with high close-off pressure: up to 10 bar close-off.
8,5mm stroke for MVT28, MVT44 (3 pos.) and MVT56L (proportional) actuators.

Thumb	File Name	File Size	Action
	2TGA..B_DBL367e.pdf	135.38KB

servomotoare
DN	3/4"
Kvs	5

2-way Valves 2TGA20B

Product Code: Controlli 2TGA20B
Availability: Ask
Weight: 1.00 kg
