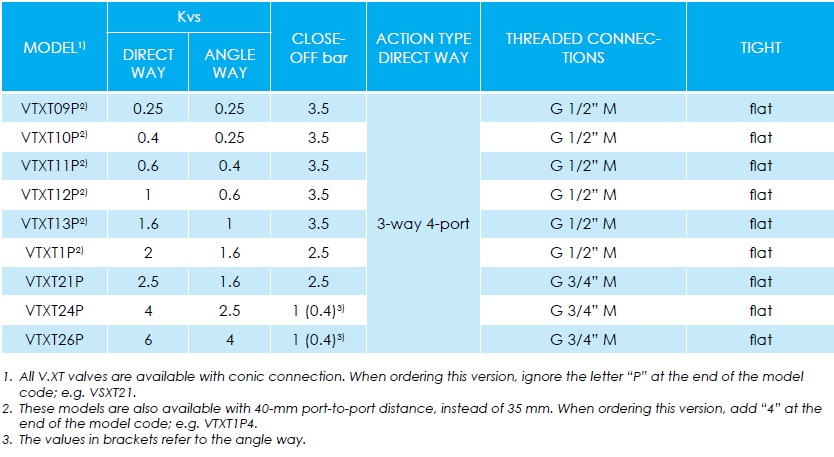

| Specification VTXT26P | |
| Kvs direct way | 6 |
| Threaded connection | G 3/4" M |
| Kvs angle way | 4 |
| Close off (bar) | 1 |
| Thumb | File Name | File Size | Action |
 |
V.XT_DBL216e.pdf | 1005.5KB |
Series V.XT - PN16 forged brass valve body - Tight close-off both on direct and angle way
- Plug with double EPDM OR
- Fluid: water and water+glycol 30% max., temperature 2 to 95°C - Stroke 5.5 mm
- Flow characteristic: equal-percentage direct way, linear angle way. To be motorised with MVT actuator.
| servomotoare | |
| Kvs direct way | 6 |
| Threaded connection | G 3/4" M |
| Kvs angle way | 4 |
| Close off (bar) | 1 |
3-way 4 ports Fan-coil Valves VTXT26P
- Product Code: Controlli VTXT26P
- Availability: Ask
- Weight: 1.00 kg
