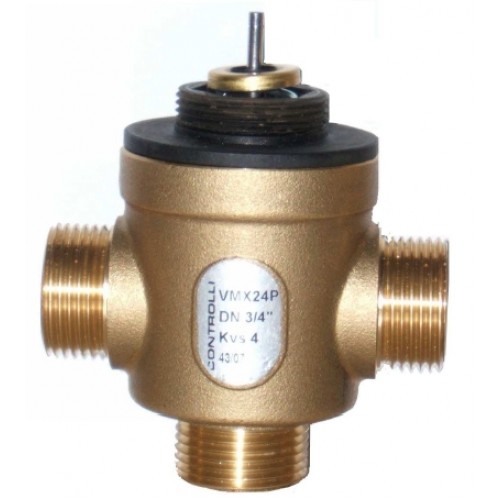

• 3-way Fan-coil Valves VMX24P
Specification VMX24P
Kvs direct way 4
Threaded connection G 3/4" M
Kvs angle way 2.5
Close off (bar) 1
Thumb File Name File Size Action
MICRA Kv4-Kv6_DBL293e.pdf 398.5KB

    Series V.X.- PN16 brass valve bodies
    - Tight close-off both on direct and angle way
    - PPS plug with double EPDM o-ring - Fluid: water and water+glycol 30% max.
    - Temperature 5 to 95 °C - Stroke 2.5 mm
    - Threaded connections for conic and flat tight - Motorised by MVX-MVR.



Thumb File Name File Size Action
MICRA Kv4-Kv6_DBL293e.pdf 398.5KB
servomotoare
Kvs direct way 4
Threaded connection G 3/4" M
Kvs angle way 2.5
Close off (bar) 1

3-way Fan-coil Valves VMX24P

  • Product Code: Controlli VMX24P
  • Availability: Ask
  • Weight: 1.00 kg

Order by phone or request additional info at +40 728 628 394
