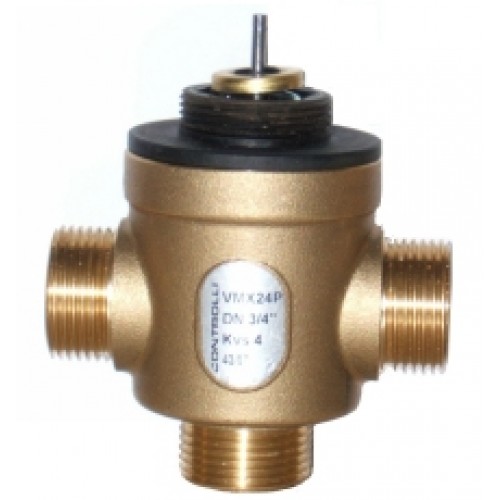

• 3-way Fan-coil Valves VMXT24P
Specification VMXT24P
Kvs direct way 4
Threaded connection G 3/4" M
Kvs angle way 2.5
Close off (bar) 1
Thumb File Name File Size Action
V.XT_DBL216e.pdf 1005.5KB

    Series V.XT - PN16 forged brass valve body - Tight close-off both on direct and angle way
    - Plug with double EPDM OR
    - Fluid: water and water+glycol 30% max., temperature 2 to 95°C - Stroke 5.5 mm
    - Flow characteristic: equal-percentage direct way, linear angle way. To be motorised with MVT actuator.



Thumb File Name File Size Action
V.XT_DBL216e.pdf 1005.5KB
servomotoare
Kvs direct way 4
Threaded connection G 3/4" M
Kvs angle way 2.5
Close off (bar) 1

3-way Fan-coil Valves VMXT24P

  • Product Code: Controlli VMXT24P
  • Availability: Ask
  • Weight: 1.00 kg
