• 3-way Valves 3TBB20
Specification 3TBB20
DN 3/4"
Kvs 5
Thumb File Name File Size Action
2TBB-3TBB_DBL244e.pdf 56.12KB

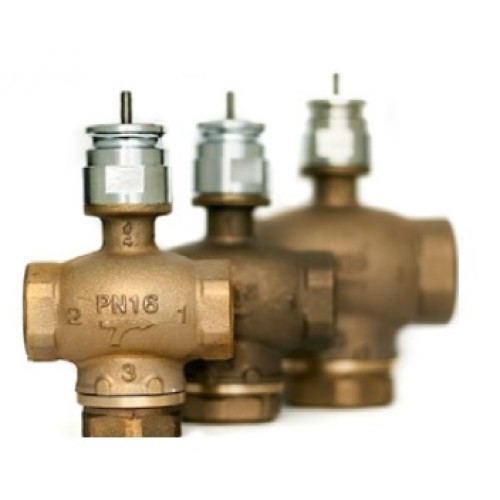

    3TBB Series = 3-way valves, mixing or diverting, bronze valve bodies with threaded connections, brass plug, stainless steel stem. Temperature applications -10°C to 130°C.
Rangeability 50:1.
    To be motorised by MVE and MVH actuators (no adapter needed). 1/2” and 3/4” models are tight close-off. Maximum leakage on 1” to 2” models is 0.1%
of Kvs.
    Stroke on 1/2” and 3/4” models is 9.5mm. Stroke on 1” to 2” models is 16mm.




Thumb File Name File Size Action
2TBB-3TBB_DBL244e.pdf 56.12KB
servomotoare
DN 3/4"
Kvs 5

3-way Valves 3TBB20

  • Product Code: Controlli 3TBB20
  • Availability: Ask
  • Weight: 2.00 kg

Order by phone or request additional info at +40 728 628 394
