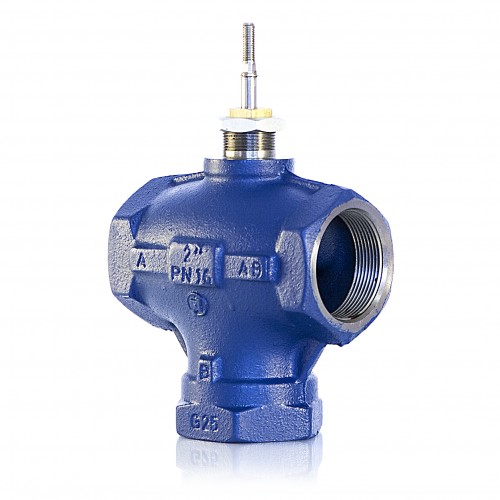

3-way Valves VMB4

MICRA®, motorised valves for fan-coil units (88) MCA, universal electro-thermal actuators (8) 2-way globe valves (110) 3-way globe valves (92) » 3-way Valves PN16 (-10° ÷ 140°C) threaded connections (9) » 3-way Valves PN16 (-10° ÷ 140°C) Flanged connections (6) » 3-way Valves PN16 Tight Close-off (5) » 3-way Valves PN16 (4) » 3-way bronze valves PN16, threaded connections (6) » 3-way Flanged Valves PN16 (-10°C / +150°C) (11) » 3-way Valves PN25 (-10°C / +230°C) (8) » 3-way Valves PN25 (-10°C / +300°C) (8) » 3-way Valves PN40 (-10°C / +230°C) (10) » 3-way Valves PN40 (-30°C / +350°) (10) » Actuators-Valve Linkages for Controlli valves (6) » Actuators-Valve Linkages for valves from other manufacturers (9) Valve Actuators (56) Valves Accessories & Options (15) Butterfly valves, Shoe valves (28) PICVs (Dynamic pressure independent control valves) (9) Damper Actuators (68)

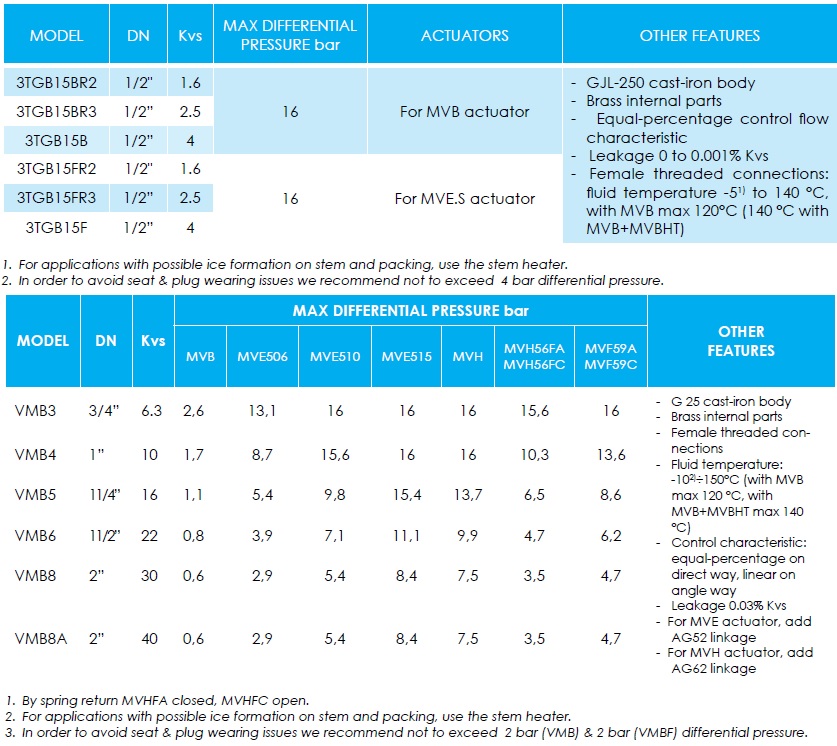

Specification VMB4
DN	1"
Kvs	10

Thumb	File Name	File Size	Action
	VSB-VMB_DBL008e.pdf	72.36KB

    Series 3T (threaded)
    - PN16 - Stroke 11.5 mm.
    To be motorised by MVB (3TGB.B)
    - MVE.S (3TGB.F) actuators.

    Series VMB (threaded) - VMBF (flanged) - PN16.
    To be motorised by MVB - MVE - MVH actuators.
    - Thermal insulation available.

Thumb	File Name	File Size	Action
	VSB-VMB_DBL008e.pdf	72.36KB

servomotoare
DN	1"
Kvs	10

3-way Valves VMB4

Product Code: Controlli VMB4
Availability: Ask
Weight: 1.50 kg

Order by phone or request additional info at +40 728 628 394
