• Electro-thermal actuator MVH3K
Specification MVH3K
Supply (V) 24
Force (N) 3000
Action 3-position and/or proportional control (selectable) Ranges: 6 to 9/4 to 7/8 to 11/0 to 10/2 to 10/1 to 5 Vdc; current 4 to 20 mA. Default setting: 0 to 10Vdc
Thumb File Name File Size Action
MVH3K_DBL332e.pdf 82.88KB

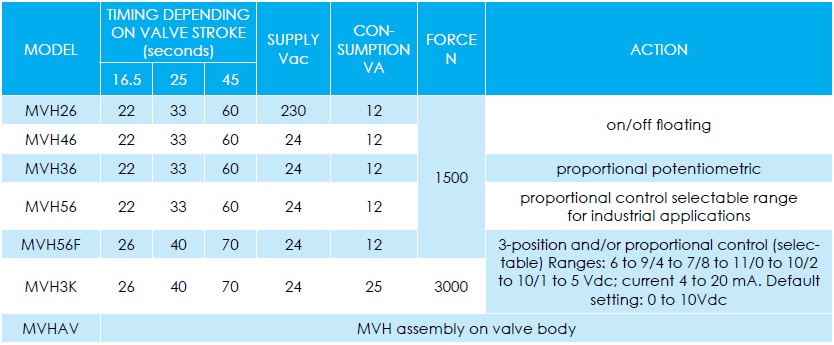

    Series MVH
    - For all valve bodies, self-adjusting stroke 10 to 45 mm (9 to 50 mm for MVH56F)
    - For VSB-VSB.F VMB-VMB.F valves only, add linkage AG62,
    - Manual override
    - Protection IP55.


Thumb File Name File Size Action
MVH3K_DBL332e.pdf 82.88KB
servomotoare
Supply (V) 24
Force (N) 3000
Action 3-position and/or proportional control (selectable) Ranges: 6 to 9/4 to 7/8 to 11/0 to 10/2 to 10/1 to 5 Vdc; current 4 to 20 mA. Default setting: 0 to 10Vdc

Electro-thermal actuator MVH3K

  • Product Code: Controlli MVH3K
  • Availability: Ask
  • Weight: 4.00 kg
