| Specification MVT56L | |
| Supply (V) | 24 |
| Force (N) | 200 |
| Action | 0 to 10/ 6 to 10/ 1 to 5/ 2 to 10/ 4 to 7/ 6 to 9/8 to 11 Vdc proportional control - direct/reverse action |
| Thumb | File Name | File Size | Action |
 |
MVT_DBL157e.pdf | 72.48KB |
Series MVT2./4.
- Bidirectional type
- Stroke 5.5 mm, stroke time 117 s.
- For V.XT - V.BT valve bodies
- Protection IP43.
Series MVT5.
- Bidirectional type with microprocessor module for proportional signal Vdc - 24 Vac power supply
- Stroke 5 mm to 5,5 mm, stroke time 117 s. - For V.XT - V.BT valve bodies
- Protection IP43.
| servomotoare | |
| Supply (V) | 24 |
| Force (N) | 200 |
| Action | 0 to 10/ 6 to 10/ 1 to 5/ 2 to 10/ 4 to 7/ 6 to 9/8 to 11 Vdc proportional control - direct/reverse action |

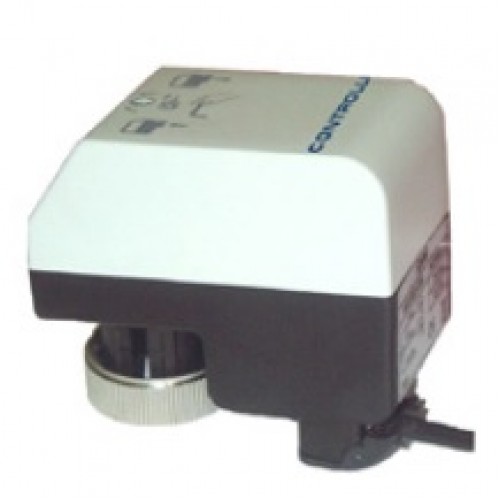

Electro-thermal actuator MVT56L
- Product Code: Controlli MVT56L
- Availability: Ask
- Weight: 1.00 kg
Order by phone or request additional info at +40 728 628 394
