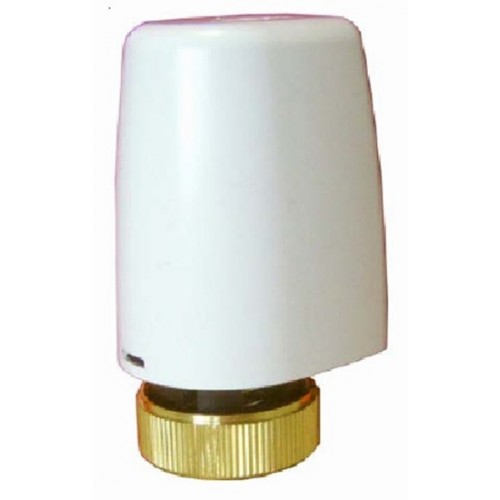

• Electro-thermal actuator with aux. microswitch MVR24MCx
Specification MVR24MCx
Stem output 10.3-11.4
Supply (V) 24
Force (N) 90
Action on-off
Thumb File Name File Size Action
MVR_DBL310E.pdf 238.73KB

    On/off and PWM control - Fast opening/closing times - 24 Vac, 110-230Vac, 50-60 HzIP44 - 4.0 mm stroke - M30x1.5 connection on valves/manifolds - 90N force
    - Starting time 60 sec. Auxiliary microswitch. Operation: without power supply MVR spindle is in “outside” position; when powered MVR pulls the spindle “inside”.
    All models are also available with auxiliary microswitch. When ordering this version, add the letter “M” to the model code, e.g. MVR230MC2.


Thumb File Name File Size Action
MVR_DBL310E.pdf 238.73KB
servomotoare
Stem output 10.3-11.4
Supply (V) 24
Force (N) 90
Action on-off

Electro-thermal actuator with aux. microswitch MVR24MCx

  • Product Code: Controlli MVR24MCx
  • Availability: Ask
  • Weight: 1.00 kg

Order by phone or request additional info at +40 728 628 394
